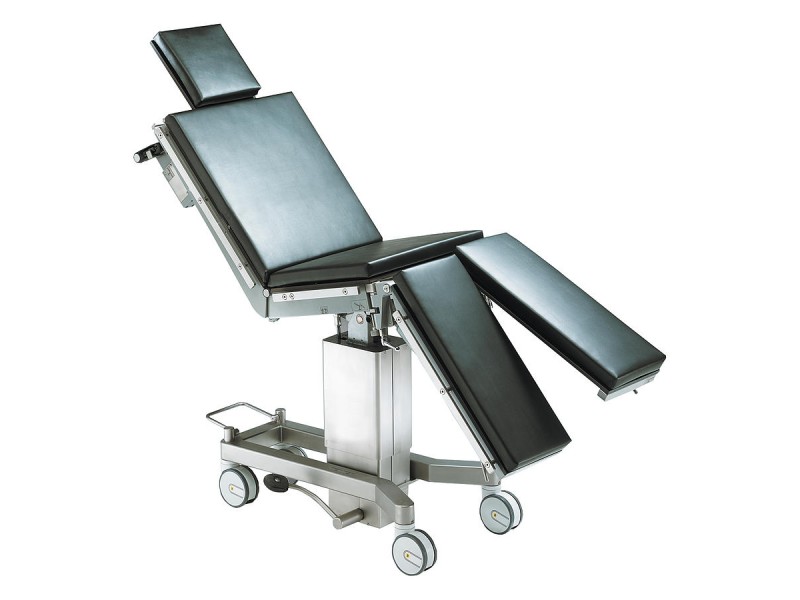

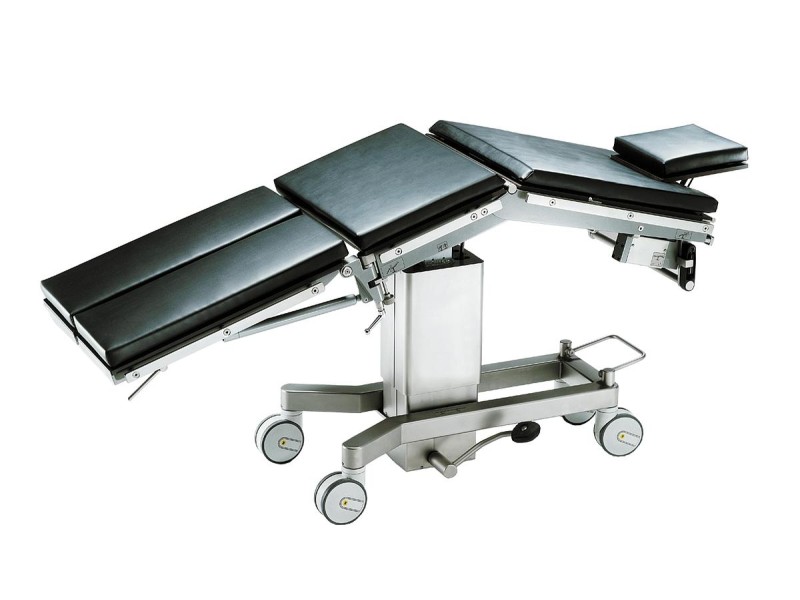

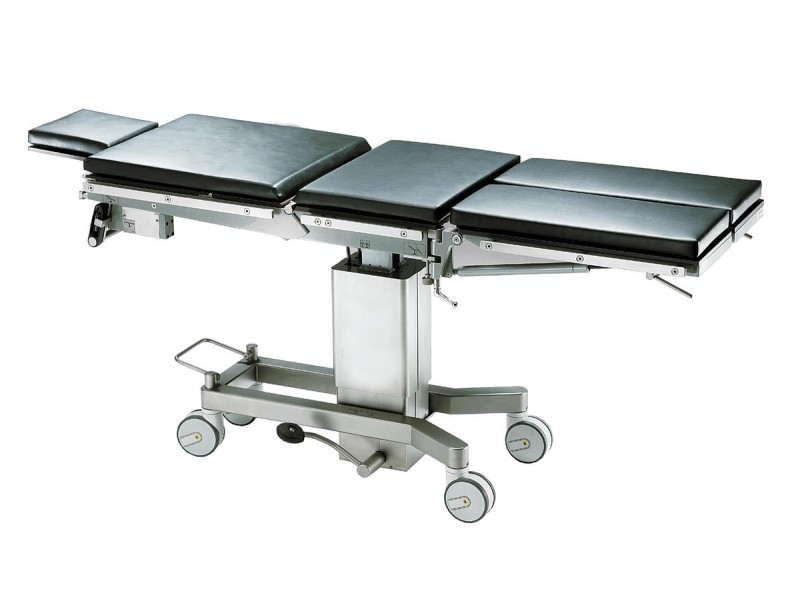

AGA-JUS – Masa de operatie mobila cu reglare hidraulica pe inaltime

AGA-JUS2000 – Masa de operatie mobila cu reglare hidraulica pe inaltime

2-3 zile

AGA-JUS2000 – Masa de operatie mobila cu reglare hidraulica pe inaltime

Vorbește cu un consultant

+40 745 070 413
+40 745 316 171
+40 356 131 906

Comanda prin Whats App

Configuratie standard – Masa de operatie AGA-JUS Componenta Descriere ...

- Spune-ţi opinia

Cantitate

Cumpără

Adauga in cos SOLICITĂ OFERTĂ

Adaugă în lista de dorințe Compară produsul

Specificații produs
Review-uri

Configuratie standard – Masa de operatie AGA-JUS

Componenta	Descriere
Sine standard pentru accesorii	Montate pe exteriorul sectiunilor spatarului, sezutului si picioarelor, dimensiuni 25 x 10 mm, fabricate din otel inoxidabil CrNi. Permite atasarea componentelor optionale precum suporturi pentru brate, bara anestezie, suporturi pentru picioare etc.
Priza de egalizare a potentialului	Pozitionata la baza coloanei mesei, pentru siguranta electro-medicala.

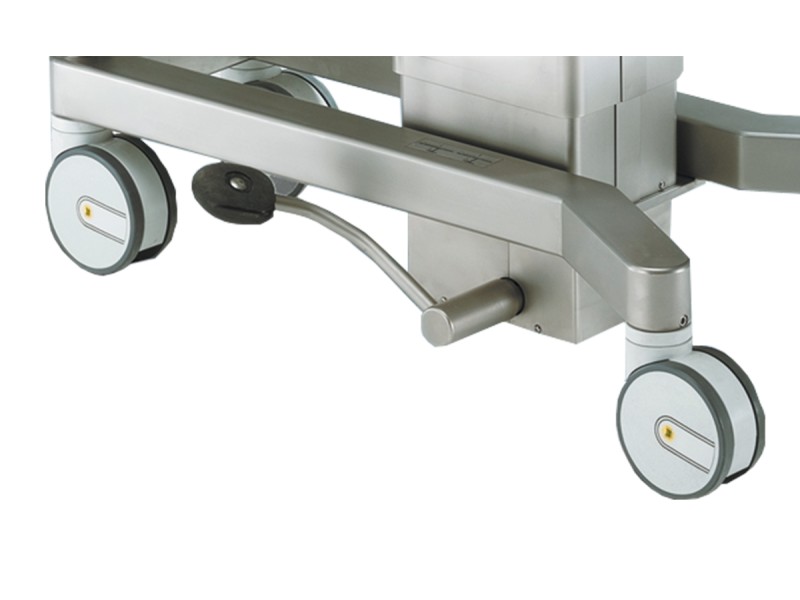

Roti duble, conductoare electric	Patru roti duble silentioase Ø 125 mm, usor manevrabile, electroconductive. Doua dintre roti sunt prevazute cu sistem de blocare actionat prin pedala.

Componenta

Descriere

Sine standard pentru accesorii

Montate pe exteriorul sectiunilor spatarului, sezutului si picioarelor, dimensiuni 25 x 10 mm, fabricate din otel inoxidabil CrNi.

Permite atasarea componentelor optionale precum suporturi pentru brate, bara anestezie, suporturi pentru picioare etc.

Priza de egalizare a potentialului

Pozitionata la baza coloanei mesei, pentru siguranta electro-medicala.

Roti duble, conductoare electric

Patru roti duble silentioase Ø 125 mm, usor manevrabile, electroconductive. Doua dintre roti sunt prevazute cu sistem de blocare actionat prin pedala.

Cuvinte cheie SEO recomandate: masa chirurgicala cu sine standard, suport accesorii masa operatie, masa medicala cu roti blocabile, echipamente compatibile cu sala de operatie.

Caracteristici	Detalii
Cod produs	JUS-2000
Cadru	Aluminiu si otel inoxidabil
Lungime totala	2.000 mm
Lungimi sectiuni	270 / 620 / 425 / 620 mm
Latime	540 mm (590 mm cu sine standard)
Reglaj pe inaltime	770 – 1.070 mm (hidraulic)
Numar sectiuni tapiterie	5 sectiuni
Material tapiterie	Piele sintetica, electroconductiva, neagra
Grosime tapiterie	40 mm
Capacitate de incarcare	160 kg
Roti	Ø 125 mm
Compatibilitate raze X	Da
Pozitie Trendelenburg	pana la 30°
Pozitie anti-Trendelenburg	pana la 30°

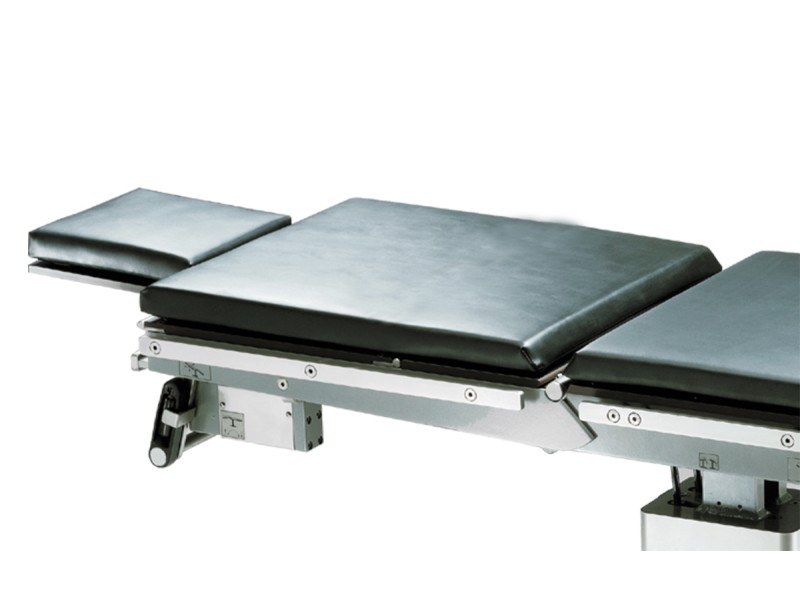

Reglaj tetiera	-/+45° (sistem in trepte)
Reglaj spatar	-45° / +75° (cu piston pe gaz)
Reglaj lateral	pana la 20° (manivela, zona sezutului)

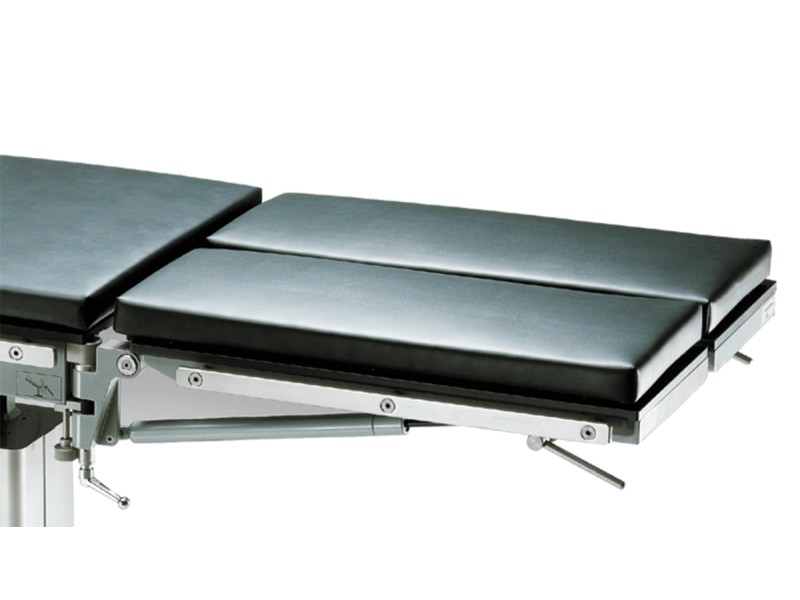

Reglaj placi picioare	-90° / +20° (individual, piston pe gaz)
Deschidere laterala placi picioare	0° / 90° (individual, levier de blocare)

Accessories and equipment components

To position patients in the best possible way and provide users with easy handling and operating conditions, additional equipment components from AGA Sanitätsartikel are essential for these tables.

Image	Article No.	Description
	A-2047	Arm support Swivel-mounted, black PU-foamed arm shell, dimensions approx. 400 x 120 mm (L x W), with 2 Velcro fasteners to secure the arm to the shell, chrome-plated holder with attachment for standard rail.
	AHT-3065	Arm and hand surgery table Made of CrNi steel, height adjustable approx. 700 - 1,135 mm, with floor support, black conductive upholstery, dimensions approx. 650 x 250 mm (L x W), removable, tabletop adjustable using ball joints, with fastening clamp for standard rail.
	BEFE-60	Leg restraints (pair) With Velcro fastenings around the leg section(s) of the operating or multi-function table, fixation of the legs using straps with Velcro fasteners, width of the strap 50 mm.
	BH-2511	Leg rests (pair) With plastic shells, rods with a 90° bend, chrome-plated, round Ø 18 mm, with Velcro closures to secure the legs to the shells. A pair of fastening clamps for standard rails is required.
	BHG-600	Göpel leg rests (pair) With spherical joints, rods with two 90° bends, chrome-plated, round Ø 18 mm, black PU-foam shells, includes the straps sewn from synthetic leather with Velcro closure to secure the legs to the shells. A pair of fastening clamps for standard rails is required.
	BKG-600	Göpel fastening clamps (pair) For standard rails (dimensions 25 x 10 mm), chrome-plated, for leg holder rods Ø 18 mm. The leg holders can be adjusted in height and tilt using toothed rings and secured with a clamping mechanism.
	BKO-2522	Fastening clamps (pair) For standard rails (dimensions 25 x 10 mm), chrome-plated, holders for Ø 18 mm, the leg rests can be secured at the desired height with a clamping handle.
	FS-2	Footswitch Surcharge for control of the electromotive height adjustment by foot switch (instead of the standard manual switch)
	HAFE-3050	Hand restraint Holder Ø 18 mm made of CrNi steel, black webbing strap, dimensions 500 x 50 mm (L x W), with lever clamp, fastening clamp for standard rail required.
	INF-30170/BKO	Infusion holder Made of CrNi steel, infusion rod 1,700 mm long, round tube Ø 18 mm, bottle cross with 4 hooks, with fastening clamp for standard rail.
	IT-3060	Instrument table Made of CrNi steel, dimensions approx. 600 x 400 mm (L x W), side raised edge 15 mm, mounting rod Ø 18 mm, fastening clamp for standard rail required.
	KÖGU-30230	Body belt Dimensions 2,250 x 50 mm (L x W), mounting bolts Ø 18 mm, made of CrNi steel, fixation with Velcro fastener. A pair of fastening clamps for standard rails is required.
	KVG	Headrest adjustment via gas pressure spring (instead of clamping rod mechanism) Can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible.
	LR/Z-50	Mobile base with central locking castor system Welded into the base frame (dimensions approx. 1,000 x 450 mm), consisting of 2 swivel and 2 fixed castors, Ø 50 mm, foot pedal with black cap located towards the head end. Retrofitting is not possible.
	MP-BTSA	Leg plates Split, removable and vertically/laterally adjustable via gas pressure springs -90°/0°, lateral adjustment via clamping mechanisms 0°/90°. Retrofitting is not possible.
	MP-PAL	Flat upholstery pads for the tabletop Thickness 40 mm, colour black, antistatic according to ISO 2882, with seamless top sides. They are attached with fleece straps to the hook straps (Velcro fasteners), which are located on the 15 mm thick radiolucent support plates. Retrofitting is not possible.
	MP-RF	Compartment for x-ray cassette Arranged under the pelvic section, dimensions approx. 435 x 305 mm (W x D). Retrofitting is not possible.
	NB-30560 NB-30640	Anesthesia pole, pole length 560 mm. Anesthesia pole, pole length 640 mm. Made of CrNi steel, round tube Ø 18 x 2 mm, with a 90° bend, fastening clamp for standard rail required.
	PAG-50	Fixation belt Length approx. 1,800 mm, width 47 mm, each with two belt locks and mounting brackets for standard rails.
	PU-2049	Paper roll holder Chrome-plated, consisting of two angles and a paper roll holder bar (length 515 mm, Ø 20 x 1 mm), for mounting (from below) on the upholstered headboard.
	RL-2060/BK	Ring armrests (pair) Black, dimensions approx. 270 x 340 x 45 mm (L x W x H), with fastening clamps for standard rails.
	SG-1000/BK SG-2000/BK SG-3000/BK	Side guard, plastic coated. Side guard, chrome-plated. Side guard, made of CrNi steel. Removable, dimensions approx. 800 x 250 mm (L x H), can be lowered to upholstery height along the fastening clamp. The fastening clamp for standard rail is included.
	SSH-3010	Shoulder/side supports (pair) Rod with two 90° bends, made of CrNi steel, round Ø 18 mm, black, electrically conductive padding (Dartex® cover), dimensions approx. 200 x 100 mm, upholstery thickness approx. 40 mm, height adjustable and rotating. A pair of fastening clamps for standard rails is required.
	SST-3018	Side support Made of CrNi steel, black, conductive upholstery (Dartex® conductive cover), removable, dimensions approx. 180 x 80 x 30 mm (H x W x D), with fastening clamp for standard rail.
	VA-30/MP	Stainless steel bowl With holder, dimensions approx. 250 x 190 x 45 mm, located directly under the seat section. Retrofitting is not possible.

Modalitati de plata:

- Numerar la livrare (ramburs, prin curier) - Numerar, la ridicare (Cash) - Ordin de plata sau transfer bancar - Plata la termen.

Livrarea produselor

- Ridicare personala - Livrare prin curier. Inaintea livrarii clientul este contactat telefonic sau prin e-mail.

Întreținere la cerere

- Se asigura 24 de luni garantie de la livrare si service post garantie contra cost. - Transportul, instalarea si instruirea personalului medical sunt incluse in preturi.

Informații suplimentare și asistență

Pentru oferta de pret si alte intrebari referitoare la acest produs contactati-ne pe email: office@tdnmedical.ro sau telefonic : 0745316171; 0745070413

Etichete: masa de operatie , masa chirurgicala , masa mobila , AGA-JUS , reglare hidraulica , masa spital , masa clinica , masa reglabila , echipamente medicale , chirurgie generală , clinici ambulatorii
