AGA-JUS – Masa de operatie mobila cu reglare hidraulica pe inaltime

In Stoc

AGA-JUS – Masa de operatie mobila cu reglare hidraulica pe inaltime

Comanda telefonic: +40 745 070 413 / +40 745 316 171 / 0356 131 906

Comanda prin Whats App

Accessories and equipment components To position patients in the best possible way and provide us...

- Spune-ţi opinia

0,00LEI

Fără TVA: 0,00LEI

Disponibilitate: In Stoc
Producator: AGA Sanitätsartikel GmbH
Model: AGA-JUS-2000

Cantitate

Cumpără

Adauga in cos SOLICITĂ OFERTĂ

Adaugă în lista de dorințe Compară produsul

Specificații produs
Review-uri

Accessories and equipment components

To position patients in the best possible way and provide users with easy handling and operating conditions, additional equipment components from AGA Sanitätsartikel are essential for these tables.

Image	Article No.	Description
	A-2047	Arm support Swivel-mounted, black PU-foamed arm shell, dimensions approx. 400 x 120 mm (L x W), with 2 Velcro fasteners to secure the arm to the shell, chrome-plated holder with attachment for standard rail.
	AHT-3065	Arm and hand surgery table Made of CrNi steel, height adjustable approx. 700 - 1,135 mm, with floor support, black conductive upholstery, dimensions approx. 650 x 250 mm (L x W), removable, tabletop adjustable using ball joints, with fastening clamp for standard rail.
	BEFE-60	Leg restraints (pair) With Velcro fastenings around the leg section(s) of the operating or multi-function table, fixation of the legs using straps with Velcro fasteners, width of the strap 50 mm.
	BH-2511	Leg rests (pair) With plastic shells, rods with a 90° bend, chrome-plated, round Ø 18 mm, with Velcro closures to secure the legs to the shells. A pair of fastening clamps for standard rails is required.
	BHG-600	Göpel leg rests (pair) With spherical joints, rods with two 90° bends, chrome-plated, round Ø 18 mm, black PU-foam shells, includes the straps sewn from synthetic leather with Velcro closure to secure the legs to the shells. A pair of fastening clamps for standard rails is required.
	BKG-600	Göpel fastening clamps (pair) For standard rails (dimensions 25 x 10 mm), chrome-plated, for leg holder rods Ø 18 mm. The leg holders can be adjusted in height and tilt using toothed rings and secured with a clamping mechanism.
	BKO-2522	Fastening clamps (pair) For standard rails (dimensions 25 x 10 mm), chrome-plated, holders for Ø 18 mm, the leg rests can be secured at the desired height with a clamping handle.
	FS-2	Footswitch Surcharge for control of the electromotive height adjustment by foot switch (instead of the standard manual switch)
	HAFE-3050	Hand restraint Holder Ø 18 mm made of CrNi steel, black webbing strap, dimensions 500 x 50 mm (L x W), with lever clamp, fastening clamp for standard rail required.
	INF-30170/BKO	Infusion holder Made of CrNi steel, infusion rod 1,700 mm long, round tube Ø 18 mm, bottle cross with 4 hooks, with fastening clamp for standard rail.
	IT-3060	Instrument table Made of CrNi steel, dimensions approx. 600 x 400 mm (L x W), side raised edge 15 mm, mounting rod Ø 18 mm, fastening clamp for standard rail required.
	KÖGU-30230	Body belt Dimensions 2,250 x 50 mm (L x W), mounting bolts Ø 18 mm, made of CrNi steel, fixation with Velcro fastener. A pair of fastening clamps for standard rails is required.
	KVG	Headrest adjustment via gas pressure spring (instead of clamping rod mechanism) Can be operated with just one hand, release button located directly on the headboard cushion. Retrofitting is not possible.
	LR/Z-50	Mobile base with central locking castor system Welded into the base frame (dimensions approx. 1,000 x 450 mm), consisting of 2 swivel and 2 fixed castors, Ø 50 mm, foot pedal with black cap located towards the head end. Retrofitting is not possible.
	MP-BTSA	Leg plates Split, removable and vertically/laterally adjustable via gas pressure springs -90°/0°, lateral adjustment via clamping mechanisms 0°/90°. Retrofitting is not possible.
	MP-PAL	Flat upholstery pads for the tabletop Thickness 40 mm, colour black, antistatic according to ISO 2882, with seamless top sides. They are attached with fleece straps to the hook straps (Velcro fasteners), which are located on the 15 mm thick radiolucent support plates. Retrofitting is not possible.
	MP-RF	Compartment for x-ray cassette Arranged under the pelvic section, dimensions approx. 435 x 305 mm (W x D). Retrofitting is not possible.
	NB-30560 NB-30640	Anesthesia pole, pole length 560 mm. Anesthesia pole, pole length 640 mm. Made of CrNi steel, round tube Ø 18 x 2 mm, with a 90° bend, fastening clamp for standard rail required.
	PAG-50	Fixation belt Length approx. 1,800 mm, width 47 mm, each with two belt locks and mounting brackets for standard rails.
	PU-2049	Paper roll holder Chrome-plated, consisting of two angles and a paper roll holder bar (length 515 mm, Ø 20 x 1 mm), for mounting (from below) on the upholstered headboard.
	RL-2060/BK	Ring armrests (pair) Black, dimensions approx. 270 x 340 x 45 mm (L x W x H), with fastening clamps for standard rails.
	SG-1000/BK SG-2000/BK SG-3000/BK	Side guard, plastic coated. Side guard, chrome-plated. Side guard, made of CrNi steel. Removable, dimensions approx. 800 x 250 mm (L x H), can be lowered to upholstery height along the fastening clamp. The fastening clamp for standard rail is included.
	SSH-3010	Shoulder/side supports (pair) Rod with two 90° bends, made of CrNi steel, round Ø 18 mm, black, electrically conductive padding (Dartex® cover), dimensions approx. 200 x 100 mm, upholstery thickness approx. 40 mm, height adjustable and rotating. A pair of fastening clamps for standard rails is required.
	SST-3018	Side support Made of CrNi steel, black, conductive upholstery (Dartex® conductive cover), removable, dimensions approx. 180 x 80 x 30 mm (H x W x D), with fastening clamp for standard rail.
	VA-30/MP	Stainless steel bowl With holder, dimensions approx. 250 x 190 x 45 mm, located directly under the seat section. Retrofitting is not possible.

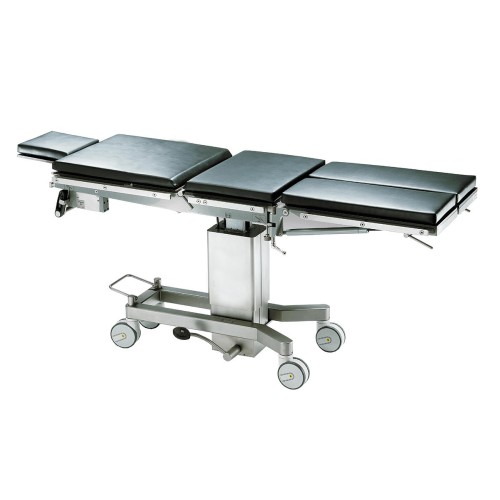

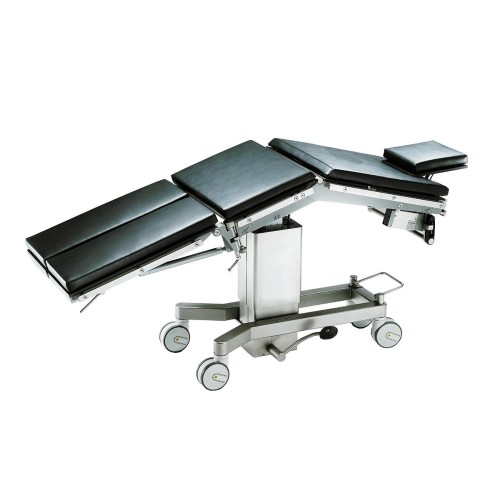

Masa de operatie AGA-JUS – multifunctionala, hidraulica, independenta energetic

Cod produs: JUS-2000

Masa de operatie AGA-JUS este o solutie versatila si eficienta din punct de vedere al costurilor, ideala pentru o gama larga de interventii chirurgicale. Blatul universal, impartit in 5 sectiuni, este compatibil cu raze X si ofera multiple optiuni de pozitionare sigura si confortabila a pacientului. Designul cu reglare hidraulica a inaltimii prin pompa de picior permite utilizarea mesei complet independenta de o sursa de energie electrica.

Caracteristici tehnice si functionale principale:

Caracteristici	Descriere
Cod produs	JUS-2000
Blat masa	Suprafata impartita in 5 sectiuni pentru pozitionare optima a pacientului
Tapiterie	Perne plate, grosime 40 mm, culoare neagra, antistatica (conform ISO 2882), suprafete superioare fara cusaturi
Fixare tapiterie	Prindere cu benzi tip arici pe placi suport compatibile cu raze X (grosime 15 mm)
Compatibilitate RX	Suprafata partial transparenta la raze X, ideala pentru utilizarea cu aparat RX sau intensificator de imagine
Cadru masa	Aluminiu si otel inoxidabil, acoperit cu pulbere; coloana protejata cu manson din inox
Baza mobila	Otel inoxidabil, cu 4 roti duble Ø 125 mm, silentioase, conductoare electric; 2 roti blocabile cu pedala

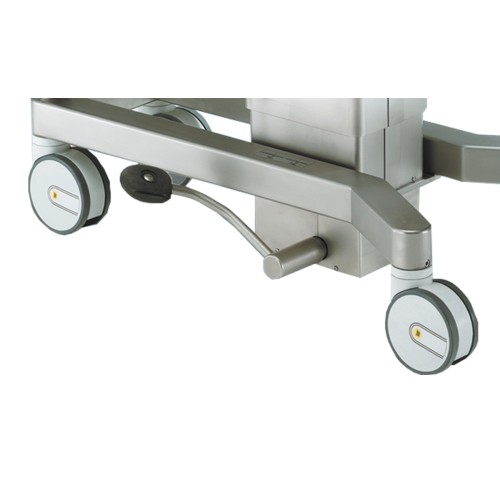

Reglaj inaltime	Hidraulic, 770–1.070 mm, prin pompa de picior (fara nevoie de curent electric)
Trendelenburg / Anti-Trendelenburg	Pana la 30°, asistat cu arc pe gaz, control centralizat din zona capului

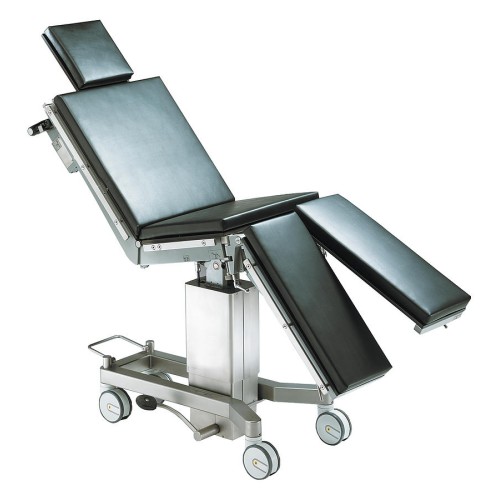

Reglaj spatar	-45° / +75°, asistat cu arc pe gaz
Inclinare laterala	Pana la 20°, reglaj manual cu manivela in zona sezutului

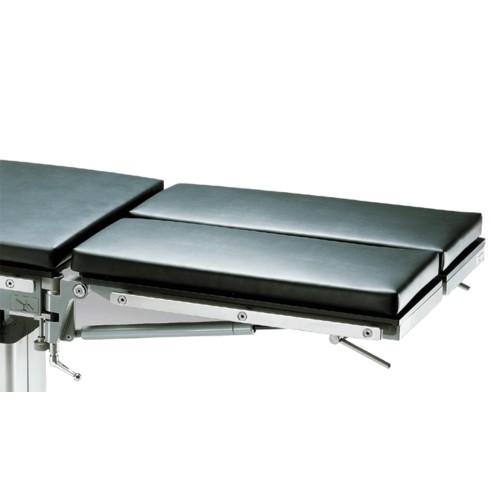

Placi pentru picioare	Drepte, separate, reglabile vertical si lateral, complet detasabile

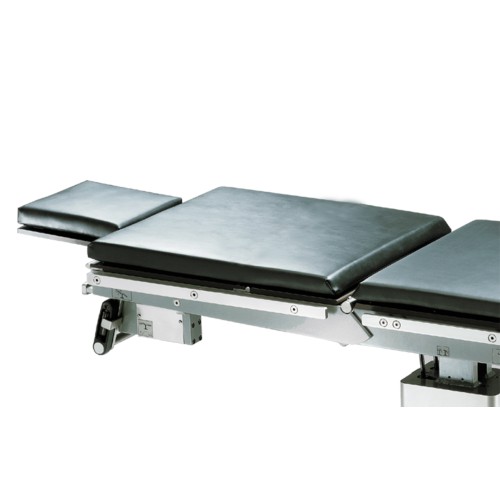

Tetiere	Reglabila lateral sau complet detasabila
Sine chirurgicale	Montate bilateral pe spatar, sezut si sectiunea picioarelor; dimensiuni 25 x 10 mm, otel inoxidabil (compatibile cu suporti pentru brate, suport anestezie, suporti picioare etc.)
Priza egalizare potential	Da, pozitionata la baza coloanei pentru siguranta electromedicala

Avantaje cheie:

Functionare fara sursa de curent – ideala pentru utilizare in orice spatiu medical.
Mobilitate si stabilitate ridicata – multumita bazei robuste si rotilor conductive.
Flexibilitate extinsa in pozitionarea pacientului, inclusiv functii avansate Trendelenburg si inclinare laterala.
Constructie durabila si usor de intretinut, din materiale de calitate medicala: otel inoxidabil si aluminiu.

Cuvinte cheie SEO recomandate: masa de operatie hidraulica, masa chirurgicala AGA-JUS, masa medicala compatibila cu raze X, masa cu sine chirurgicale, masa pentru clinici si spitale, masa operatie fara curent, mobilier medical profesional.

Caracteristici	Detalii
Cod produs	JUS-2000
Cadru	Aluminiu si otel inoxidabil
Lungime totala	2.000 mm
Lungimi sectiuni	270 / 620 / 425 / 620 mm
Latime	540 mm (590 mm cu sine standard)
Reglaj pe inaltime	770 – 1.070 mm (hidraulic)
Numar sectiuni tapiterie	5 sectiuni
Material tapiterie	Piele sintetica, electroconductiva, neagra
Grosime tapiterie	40 mm
Capacitate de incarcare	160 kg
Roti	Ø 125 mm
Compatibilitate raze X	Da
Pozitie Trendelenburg	pana la 30°
Pozitie anti-Trendelenburg	pana la 30°
Reglaj tetiera	-/+45° (sistem in trepte)
Reglaj spatar	-45° / +75° (cu piston pe gaz)
Reglaj lateral	pana la 20° (manivela, zona sezutului)
Reglaj placi picioare	-90° / +20° (individual, piston pe gaz)
Deschidere laterala placi picioare	0° / 90° (individual, levier de blocare)

Modalitati de plata:

- Numerar la livrare (ramburs, prin curier) - Numerar, la ridicare (Cash) - Ordin de plata sau transfer bancar - Plata la termen.

Livrarea produselor

- Ridicare personala - Livrare prin curier. Inaintea livrarii clientul este contactat telefonic sau prin e-mail.

Întreținere la cerere

- Se asigura 24 de luni garantie de la livrare si service post garantie contra cost. - Transportul, instalarea si instruirea personalului medical sunt incluse in preturi.

Informații suplimentare și asistență

Pentru oferta de pret si alte intrebari referitoare la acest produs contactati-ne pe email: office@tdnmedical.ro sau telefonic : 0745316171; 0745070413

Etichete: masa de operatie , masa chirurgicala , masa mobila , AGA-JUS , reglare hidraulica , masa spital , masa clinica , masa reglabila , echipamente medicale , chirurgie generală , clinici ambulatorii
